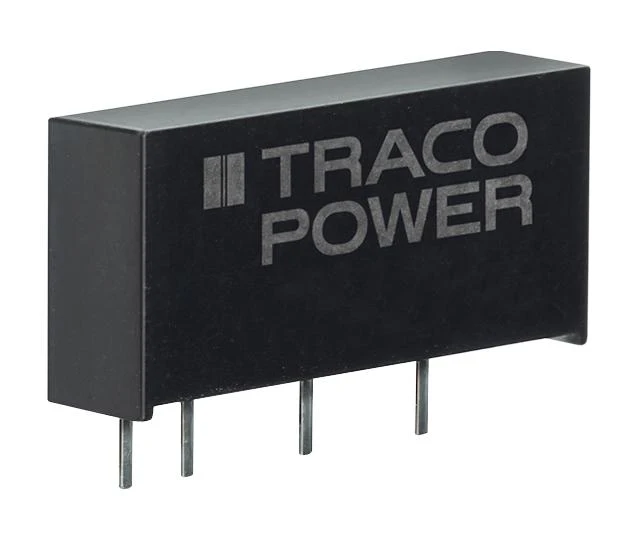

Traco Power TBA 1-2411E Isolated Board Mount DC/DC Converter ITE 1 Output W 5 V 200 mA

This is a TBA 1-2411E Isolated Board Mount DC/DC Converter , ITE, 1 Output, 1 W, 5 V, 200 mA product from TRACO POWER with the model number TBA 1-2411E

Product details

Power Supply Approvals	ITE
No. of Outputs	1 Output
Output Power Max	1W
Output Voltage - Output 1	5V
Output Current - Output 1	200mA
Output Voltage - Output 2	-
Output Current - Output 2	-
Output Voltage - Output 3	-
Output Current - Output 3	-
Product Range	TBA 1E Series
Input Voltage DC Min	21.6V
Input Voltage DC Max	26.4V
DC / DC Converter Output Type	Fixed
DC / DC Converter Type	SIP
DC / DC Converter Mounting	Through Hole
Width	6mm
Height	10mm
Depth	19.5mm

Other details

Brand	TRACO POWER
Part Number	TBA 1-2411E
Quantity	Each
Technical Data Sheet EN
