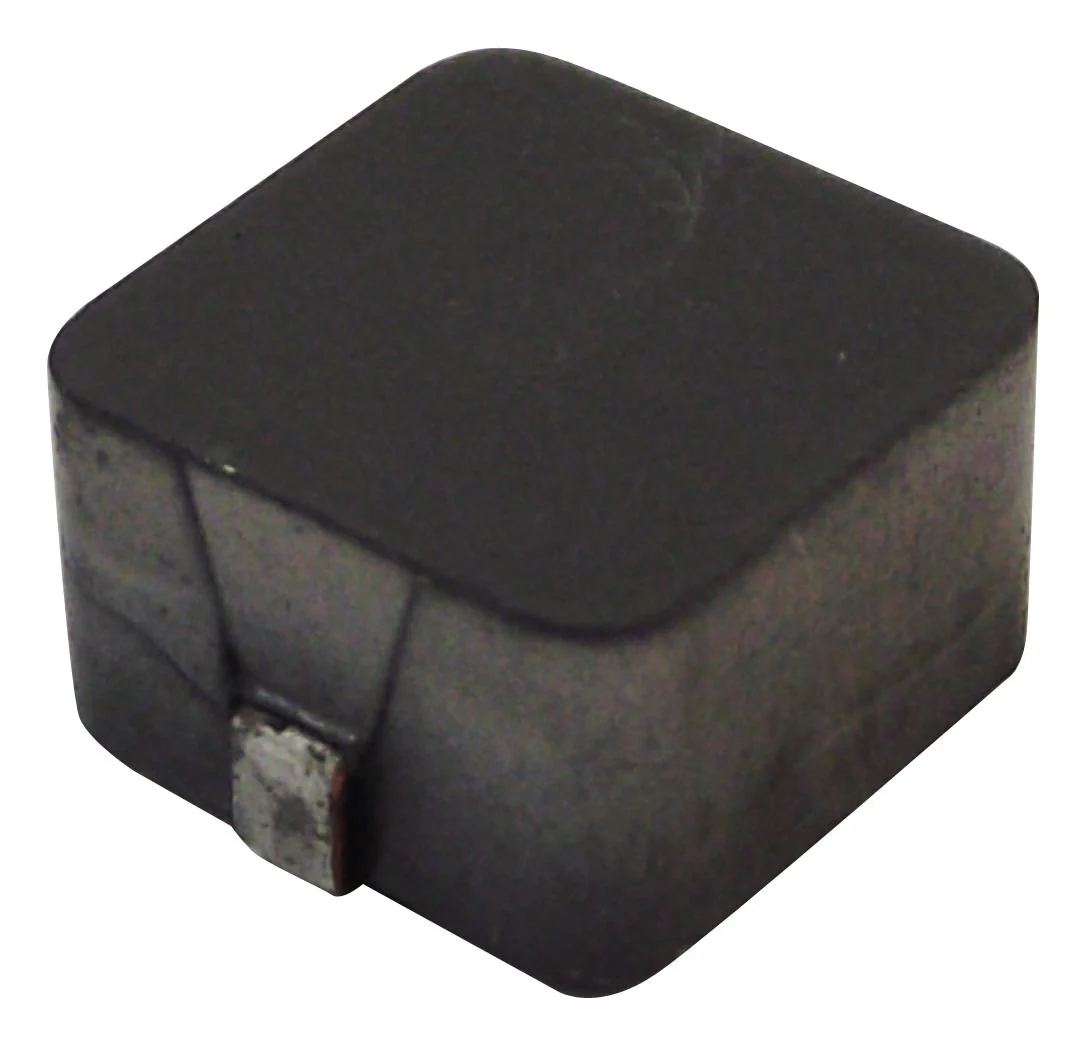

Traco Power TCK-108 Inductor (SMD) 3.3 µH A Unshielded
- Inductor with 3.3µH ±20% (at 100KHz / 250mV) inductance
- 50mohm maximum impedance (DCR)
- 3.3A maximum rated current
- Operating temperature range from -40°C to +125°C
Product details
| Inductance | 3.3µH |
| RMS Current (Irms) | 3.3A |
| Inductor Construction | Unshielded |
| Saturation Current (Isat) | - |
| Product Range | - |
| DC Resistance Max | 0.05ohm |
| Inductance Tolerance | ± 20% |
| Product Length | 4mm |
| Product Width | 4mm |
| Product Height | 2.1mm |
Other details
| Brand | TRACO POWER |
| Part Number | TCK-108 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$2.95
Original: $9.82
-70%Traco Power TCK-108 Inductor (SMD) 3.3 µH A Unshielded—
$9.82
$2.95Product Information
