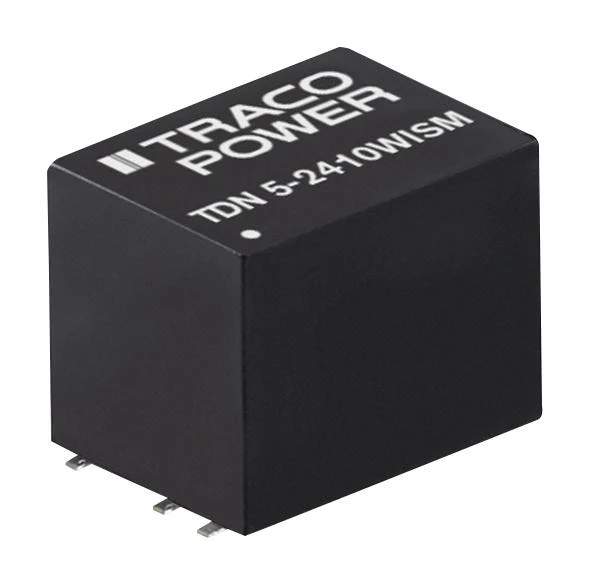

Tracopower TDN 5-2410WISM Isolated Board Mount DC/DC Converter 1 Output 5 W 3.3 V A

This is a Isolated Board Mount DC/DC Converter, 1 Output, 5 W, 3.3 V, 1 A product from TRACOPOWER with the model number TDN 5-2410WISM

Product details

No. of Outputs	1 Output
Output Power Max	5W
Output Voltage - Output 1	3.3V
Output Current - Output 1	1A
Output Voltage - Output 2	-
Output Current - Output 2	-
Output Voltage - Output 3	-
Output Current - Output 3	-
Product Range	TDN 5WISM Series
Input Voltage DC Min	9V
Input Voltage DC Max	36V
DC / DC Converter Output Type	Fixed
DC / DC Converter Type	Surface Mount DIP
DC / DC Converter Mounting	Surface Mount Device
Approvals & Standards	EN, UL
Width	9.1mm
Height	10.2mm
Depth	13.2mm
RoHS Phthalates Compliant	Yes

Other details

Brand	TRACOPOWER
Part Number	TDN 5-2410WISM
Quantity	Each
Technical Data Sheet EN
