TRACOPOWER TEN 5-2421WI Isolated Board Mount DC/DC Converter, 4:1 Input, Fixed, 2 Output, 9 V, 36 V, 5 W, 5 V
The TEN 5-2421WI is a 2-output board-mount isolated DC to DC Converter with ultra wide 4:1 input range. The TEN 5WI series 6W high performance converter comes with industry-standard footprint and high efficiency at full load. This converter is ideal for applications where wide input voltage range is required.
- Full SMD design
- Excellent load and line regulation
- Indefinite short-circuit protection
- 1500VDC I/O Isolation
- Built-in filter to meet EN 55022, class A and FCC, level A
- -40 to +85°C Extended operating temperature range
Applications
Power Management, Communications & Networking, Industrial
- :
- 5W
- :
- 9V
- :
- Through Hole
- :
- -5V
- :
- 500mA
- :
- 31.8mm
- :
- 20.3mm
- :
- -
- :
- DIP
- :
- IEC, UL
- :
- -
- :
- 5V
- :
- -
- :
- 2 Output
- :
- Fixed
- :
- 36V
- :
- 500mA
- :
- 10.2mm
Product details
| Output Power Max | 5W |
| Input Voltage DC Min | 9V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | -5V |
| Output Current - Output 2 | 500mA |
| Depth | 31.8mm |
| Width | 20.3mm |
| Product Range | - |
| DC / DC Converter Type | DIP |
| Approvals & Standards | IEC, UL |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 3 | - |
| No. of Outputs | 2 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 36V |
| Output Current - Output 1 | 500mA |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TEN 5-2421WI |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |

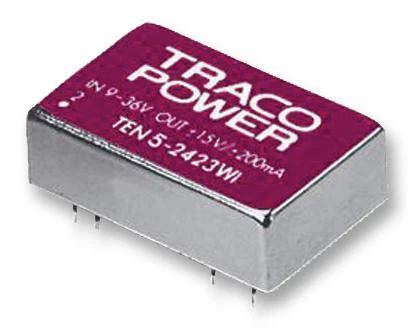

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$12.88
Original: $42.94
-70%TRACOPOWER TEN 5-2421WI Isolated Board Mount DC/DC Converter, 4:1 Input, Fixed, 2 Output, 9 V, 36 V, 5 W, 5 V—
$42.94
$12.88Product Information
