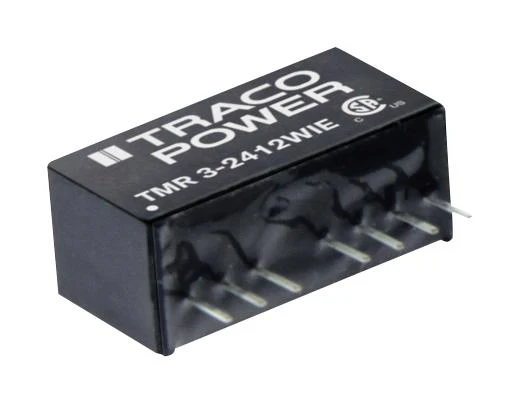

Tracopower TMR 3-2412WIE Isolated Board Mount DC/DC Converter ITE 1 Output 3 W 12 V 250 mA

The TMR-3WIE series from Tracopower are isolated 3W DC to DC converters with regulated output. The product comes in a compact SIP-8 plastic package featuring wide 4:1 input voltage ranges. The compact dimensions and cost optimized design make these converters an ideal solution for applications in communication equipment, instrumentation and industrial electronics.

• Nominal input voltage : 12VDC/24VDC/48VDC
• Output voltage : 3.3/5/12/15/±5/±12/±15VDC
• Maximum output current : 700/600/250/200/±300/±125/±100mA
• Efficiency up to 81%, PFM switching frequency is 350KHz typical
• I/O isolation voltage (60sec) is 1500VDC
• Typical I/O isolation capacitance is 200pF
• I/O isolation resistance is >1Gohm at 500VDC
• Ripple and noise (20MHz bandwidth) is 75mVp-p maximum
• Remote on/off control and continuous short circuit protection
• Operating temperature range from -40°C to 85°C, 3-year product warranty

Product details

No. of Outputs	1 Output
Output Power Max	3W
Output Voltage - Output 1	12V
Output Current - Output 1	250mA
Output Voltage - Output 2	-
Output Current - Output 2	-
Output Voltage - Output 3	-
Output Current - Output 3	-
Product Range	TMR 3WIE Series
Input Voltage DC Min	9V
Input Voltage DC Max	36V
DC / DC Converter Output Type	Fixed
DC / DC Converter Type	SIP
DC / DC Converter Mounting	Through Hole
Width	9.3mm
Height	11.2mm
Depth	21.8mm
RoHS Phthalates Compliant	Yes

Other details

Brand	TRACOPOWER
Part Number	TMR 3-2412WIE
Quantity	Each
Technical Data Sheet EN
