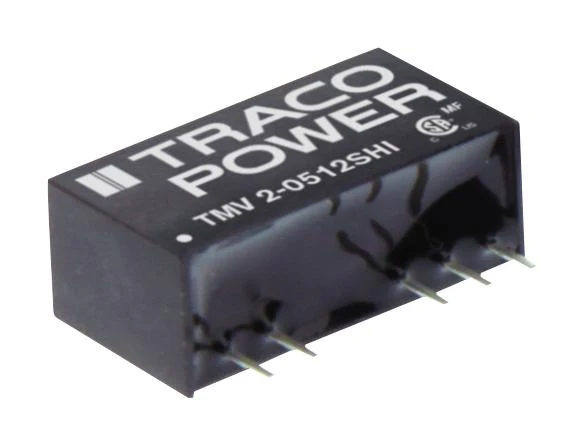

Tracopower TMV 2-2415DHI Isolated Board Mount DC/DC Converter ITE & Gate Drive 2 Output W 15 V 66 mA -15
The TMV-2HI series from Tracopower are 2W non regulated DC to DC converters with high I/O-isolation. They come in an ultra-compact SIP-7 package and are ideal for IGBT applications.
- Nominal input voltage : 5VDC/12VDC/15VDC/24VDC
- Output voltage : 3.3/5/9/12/15/±5/±9/±12/±15/(+15/-9)VDC
- Maximum output current : 500/400/222/168/132/±200/±112/±84/±66/(+66/-10)mA
- Efficiency up to 85%, 100KHz typ switching frequency
- Very high I/O isolation of 5200VDC (5700Vpk)
- Maximum I/O isolation capacitance is 7pF
- I/O isolation resistance is >10Gohm
- Ripple and noise (20MHz bandwidth) is 100mVp-p maximum
- Short circuit protection
- Operating temperature range from -40°C to 85°C, 3-year product warranty
Product details
| Power Supply Applications | ITE & Gate Drive |
| No. of Outputs | 2 Output |
| Output Power Max | 2W |
| Output Voltage - Output 1 | 15V |
| Output Current - Output 1 | 66mA |
| Output Voltage - Output 2 | -15V |
| Output Current - Output 2 | 66mA |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Product Range | TMV 2HI Series |
| Input Voltage DC Min | 21.6V |
| Input Voltage DC Max | 26.4V |
| DC / DC Converter Output Type | Fixed |
| DC / DC Converter Type | SIP |
| DC / DC Converter Mounting | Through Hole |
| Width | 7.5mm |
| Height | 10.2mm |
| Depth | 19.5mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TMV 2-2415DHI |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
