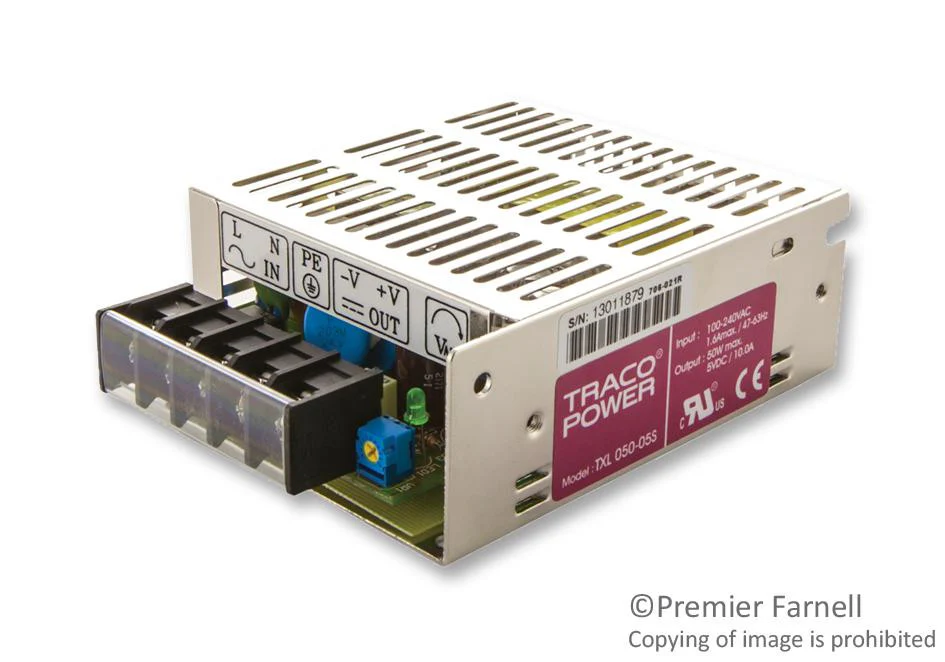

TRACOPOWER TXL 050-05S AC/DC Enclosed Power Supply (PSU), Compact, 1 Outputs, 50 W, 5 V, 10 A
The TXL 050-05S is a 5V/50W 1-output Enclosed Power Supply designed for a wide range of critical applications. With a low profile metal case and screw terminal block connection, it is easy to install in any equipment. This power supply has universal input and comply with European EMC standards and the low voltage directive (LVD), adjustable and fixed output voltage. Fold back, automatic recovery overload protection mode, 105 to 150% of Vout nom overvoltage protection.
- Compact metal D-case
- Short-circuit and overvoltage protection
- <50mV Ripple and noise
- 70 to 84% Efficiency
- 20ms Minimum hold up time
- -20 to 70°C Operating temperature range
Applications
Power Management
Product details
| Power Supply Output Type | Adjustable, Fixed |
| Output Power Max | 50W |
| No. of Outputs | 1Outputs |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Input Voltage AC Max | 264V |
| Input Voltage AC Min | 85V |
| Product Range | TXL Series |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 3 | - |
| Output Current - Output 4 | - |
| Output Voltage - Output 4 | - |
| Output Current - Output 1 | 10A |
Other details
| Brand | TRACOPOWER |
| Part Number | TXL 050-05S |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$26.77
Original: $89.24
-70%TRACOPOWER TXL 050-05S AC/DC Enclosed Power Supply (PSU), Compact, 1 Outputs, 50 W, 5 V, 10 A—
$89.24
$26.77Product Information
