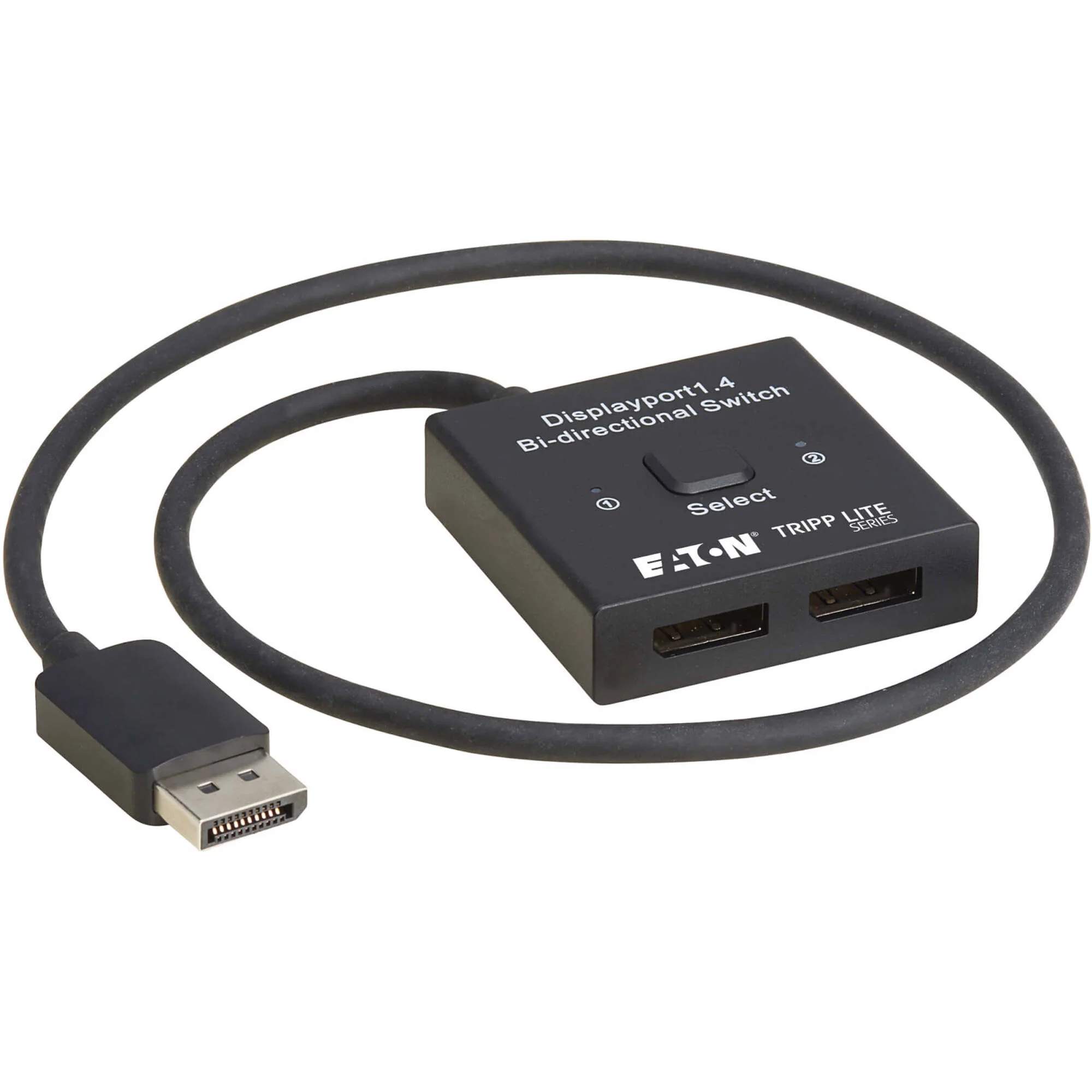

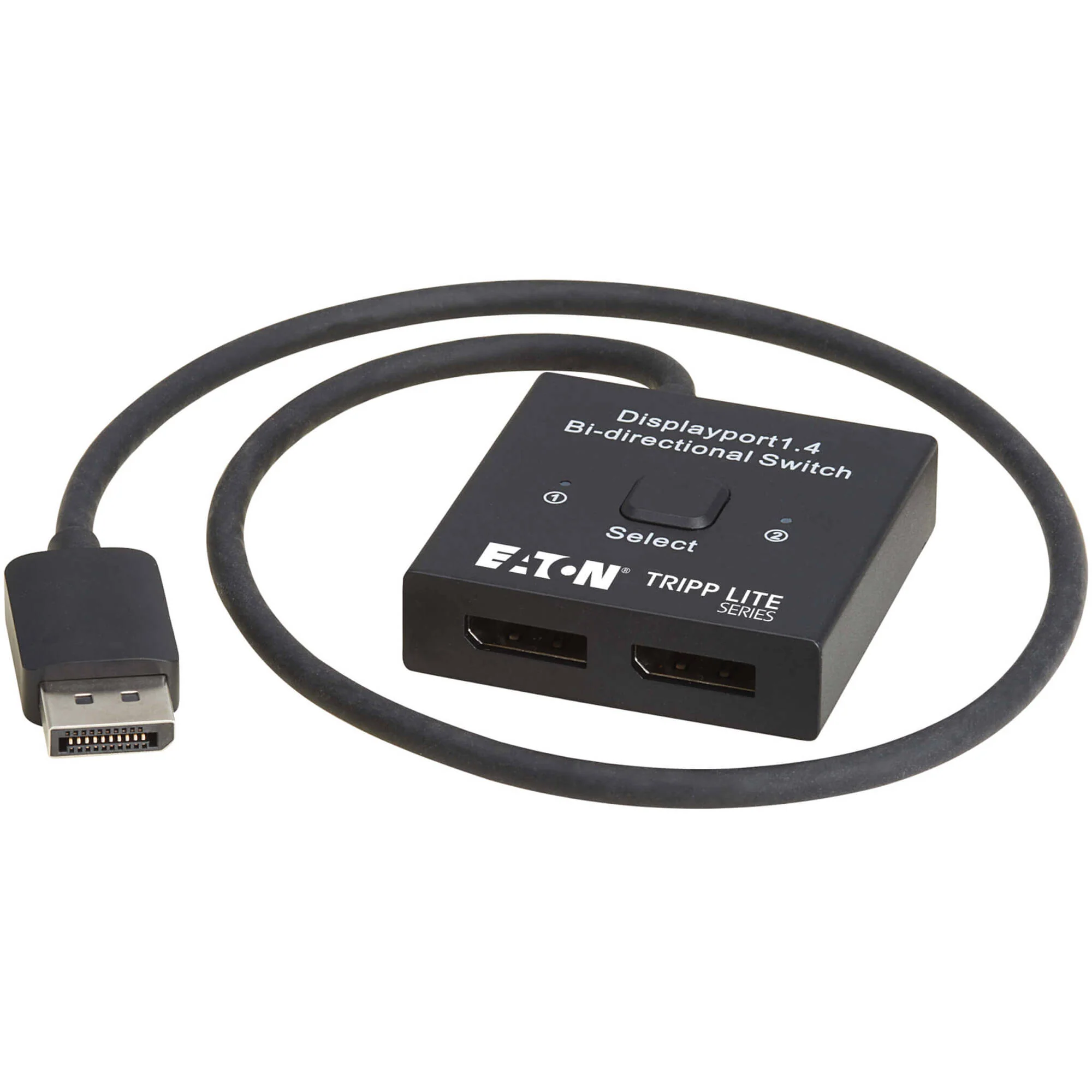

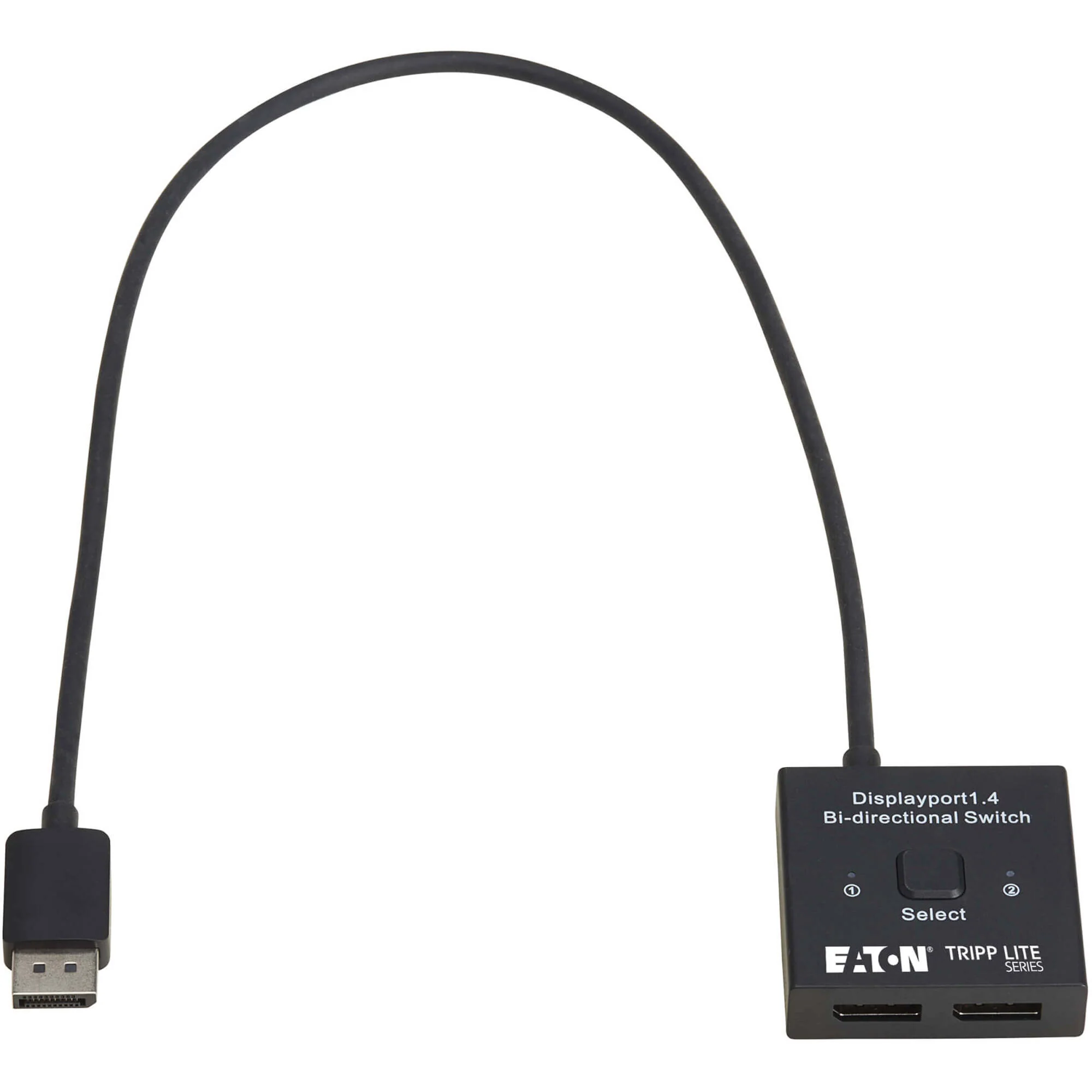

Tripp Lite 2x1 Bidirectional UHD 4K DisplayPort Switch

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7

Tripp Lite 2x1 Bidirectional UHD 4K DisplayPort Switch

Tripp Lite 4K DisplayPort Switch Overview

Digital Signage and Video Presentations
Ideal for digital signage, home theater, and video presentations, the 2x1 Bidirectional UHD 8K/4K DisplayPort Switch from Tripp Lite lets you toggle between two video sources on a single display or switch one video source between two displays at resolutions up to 8K30 and UHD 4K120. It supports HDR in UHD 4K and is powered through the male DisplayPort or the USB-C input port.
UHD 4K HDR Video
This switch supports up to 8K30 or UHD 4K120 video with compressed and uncompressed audio, respectively. It is compatible with HDR video and has HDCP passthrough for up to UHD 4K content.
Bidirectional Switching
  • Seamlessly switch between two sources to one display or one source to two displays using the switch on top of the unit.
  • LED lights indicate the selected channel.
USB-C Charging Passthrough
Power is supplied through the DP male connector, but there is a 5V USB-C port used if passthrough charging is required.
UPC: 037332288738

Items Included

  • Tripp Lite 2x1 Bidirectional UHD 4K DisplayPort Switch

Additional Resources

    Tripp Lite 4K DisplayPort Switch Specs

    Processing
    Switching Type
    Pushbutton
    Processing Resolution
    8K at 30
    Color Processing
    16-Bit 4:2:0
    Input
    Video Inputs
    1x DisplayPort (1.4)
    Input Video Format
    DisplayPort (16-Bit 4:2:0)
    8K at 30 fps
    UHD 4KPsF up to 120 fps
    Embedded Audio Input
    DisplayPort
    Output
    Output Video Format
    DisplayPort (16-Bit 4:2:0)
    8K at 30 fps
    UHD 4KPsF up to 120 fps
    Embedded Audio Output
    DisplayPort
    Connectivity
    Inputs/Outputs

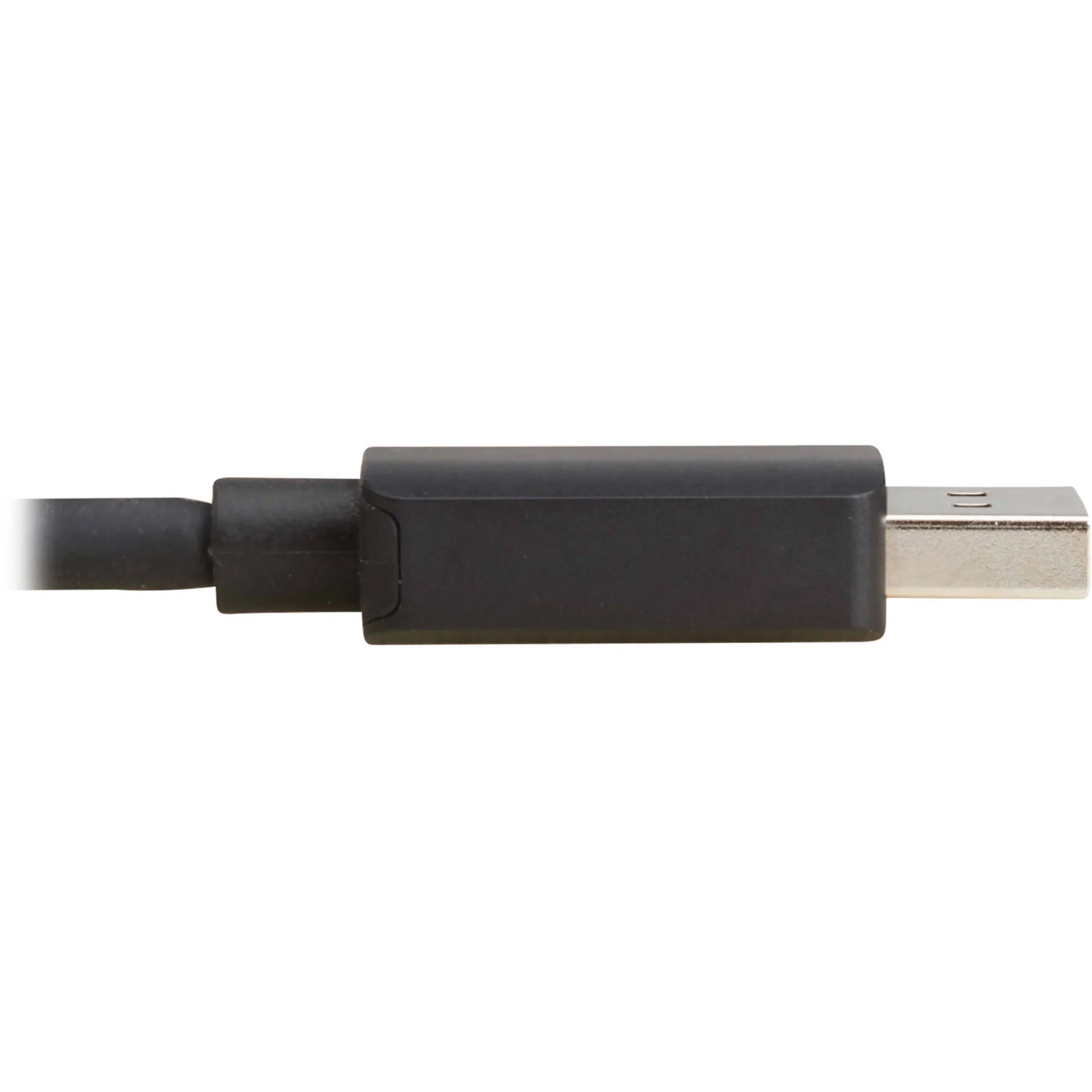

    1x DisplayPort (1.4) Male (Switchable)
    2x DisplayPort (1.4) Female (Switchable)
    HDR Support
    Yes
    Hardware
    Wireless
    No
    Power
    Power I/O
    2x USB-C Input
    General
    Operating Conditions
    14 to 113?F / -10 to 45?C at 10 to 90% Humidity
    Storage Conditions
    14 to 158?F / -10 to 70?C at 10 to 90% Humidity
    Certifications
    CE, FCC, RoHS, UKCA, WEEE
    Dimensions
    5.3 x 0.9 x 0.14" / 134.6 x 22.9 x 3.56 mm
    Weight
    2.24 oz / 64 g
    Packaging Info
    Package Weight
    0.225 lb
    Box Dimensions (LxWxH)
    6.5 x 5.5 x 0.95"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $23.62

    Original: $78.75

    -70%
    Tripp Lite 2x1 Bidirectional UHD 4K DisplayPort Switch—

    $78.75

    $23.62
