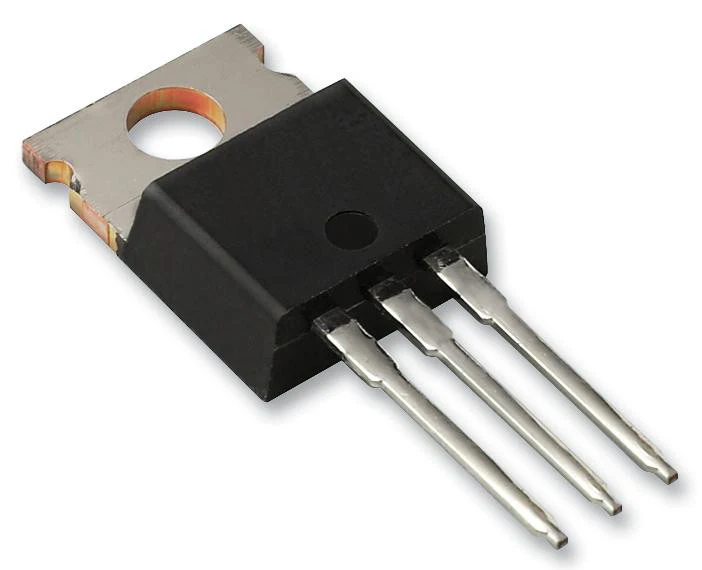

VISHAY IRF740APBF MOSFET Transistor, N Channel, 10 A, 400 V, 550 mohm, 10 V, 4 V
The IRF740APBF is a 400V N-channel Power MOSFET with low gate charge Qg results in simple drive requirement. It operates at high frequency with hard switching application. Suitable for SMPS and high speed power switching.
- Improved gate, avalanche and dynamic dv/dt ruggedness
- Fully characterized capacitance and avalanche voltage and current
- Low RDS (ON)
- 150°C Operating temperature
Applications
Power Management
Product details
| Power Dissipation Pd | 125W |
| Operating Temperature Max | 150°C |
| Continuous Drain Current Id | 10A |
| Transistor Polarity | N Channel |
| No. of Pins | 3Pins |
| Threshold Voltage Vgs | 4V |
| Product Range | - |
| Automotive Qualification Standard | - |
| Drain Source Voltage Vds | 400V |
| Rds(on) Test Voltage Vgs | 10V |
| Transistor Case Style | TO-220AB |
| On Resistance Rds(on) | 0.55ohm |
| MSL | - |
Other details
| Brand | VISHAY |
| Part Number | IRF740APBF |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
