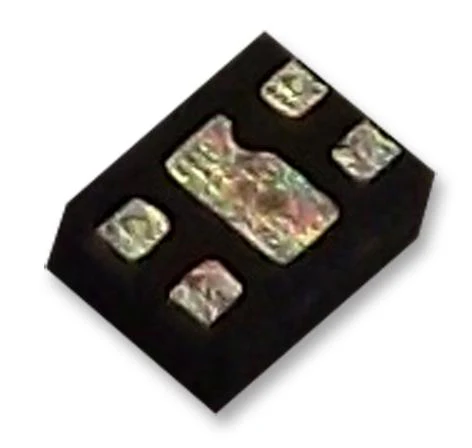

Vishay SIP32431DNP3-T1GE4 Power Load Distribution Switch Active High 1 Output 5.5V 0.74A 105mohm TDFN-4 Pins
This is a Power Load Distribution Switch, Active High, 1 Output, 5.5V, 0.74A, 105mohm, TDFN-4 Pins product from VISHAY with the model number SIP32431DNP3-T1GE4
Product details
| Power Load Switch Type | High Side |
| Input Voltage | 5.5V |
| Current Limit | 740mA |
| On State Resistance | 0.105ohm |
| Distribution Switch Case Style | TDFN |
| No. of Pins | 4Pins |
| Thermal Protection | - |
| On / Enable Input Polarity | Active High |
| No. of Outputs | 1Outputs |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| MSL | MSL 1 - Unlimited |
| RoHS Phthalates Compliant | Yes |
Other details
| Brand | VISHAY |
| Part Number | SIP32431DNP3-T1GE4 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
